The 38″ x 30″ Stackable Wall-Stacker Oil Tanks are Available in 121, 269 and 435 Liter Capacities, and are Ideal for Tight Bay Ends and Pit Areas.
Stackable Wall-Stacker Oil Tanks
Wall-Stacker Oil Tank Specifications
The Wall-Stacker tanks feature (2) Angled Fill Ports with 2″ NPT Poly Caps and (1) 1″ Bulkhead for convenient access. Crafted with advanced UV stabilized resins, these tanks offer prolonged durability against direct sunlight and ultraviolet light exposure.
Designed for ease of use, Wall-Stacker storage tanks provide a clear visual fluid inventory and effortless filling in each stacked tank. Constructed from virgin polyethylene UL rated food-grade resins, they can be complemented with various accessories such as gravity feed dispense systems, pumps and reels, oil bars, secondary containment, and more, catering to diverse fluid handling needs.
| Tank Model | Tank Cap. | Tank Dim. | Tank Ht. | Tank Wt. |
| WS32 | 121 Litres / 32 Gal | 38"W x 19"D | 18" | 33 Lbs. |
| WS71 | 269 Litres / 71 Gal | 38"W x 19"D | 33" | 47 Lbs. |
| WS115 | 435 Litres / 115 Gal | 38"W x 19"D | 48" | 61 Lbs. |
Wall-Stacker Tank Benefits
Maximize valuable space with Wall-Stacker oil tanks, featuring a compact stackable tank system footprint of just 38″W x 30″D. These tanks are simple solutions for storing and dispensing bulk oil and fluid storage in constrained locations such as bay ends and pits. Stackable up to four tanks high, they utilize steel wall straps for secure attachment to a wall. Efficiently store and dispense multiple oils, diesel exhaust fluid, and automotive fluids with this reliable and safe system.
- Wall-Stacker Tank Dimensions: 38"W x 19"D
- Wall-Stacker Tank Capacities: 32, 71 and 115 Gallons
- Wall-Stacker Gravity Feed System Dimensions: 38"W x 30"D
- Enable bulk fluid deliver and reduce overall fluid expenses & waste.
- Eliminate hassles from packaged goods & drums.
- Maximize space with a stackable storage system.
- Flexibility to move fluids with portable systems.
Wall-Stacker Gravity Feed System Specifications
32 Gallon Wall-Stacker Gravity Feed Systems

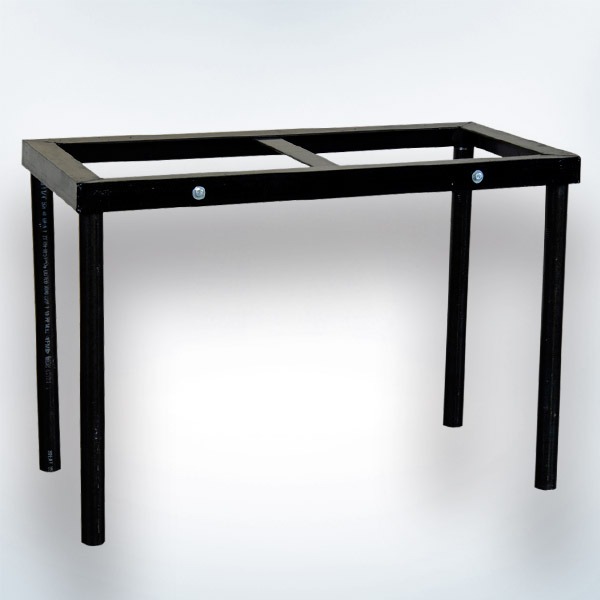

Gravity feed systems include Wall Straps, 24″H Stand, 3 Pan Drip Tray Assembly and a Gravity Feed Dispense Kit.
32 Gallon Wall-Stacker Gravity Feed Systems
| System | No. of Tanks | Sys. Cap. | Sys. Dim. | Sys. Ht. |
| WS32-1 | 1 | 121 Litres / 32 Gal | 38"W x 30"D | 42" |
| WS32-2 | 2 | 242 Litres / 64 Gal | 38"W x 30"D | 57" |
| WS32-3 | 3 | 364 Litres / 96 Gal | 38"W x 30"D | 72" |
| WS32-4 | 4 | 485 Litres / 128 Gal | 38"W x 30"D | 87" |
71 Gallon Wall-Stacker Gravity Feed Systems
| System | No. of Tanks | Sys. Cap. | Sys. Dim. | Sys. Ht. |
| WS71-1 | 1 | 269 Litres / 71 Gal | 38"W x 30"D | 57" |
| WS71-2 | 2 | 538 Litres / 142 Gal | 38"W x 30"D | 87" |

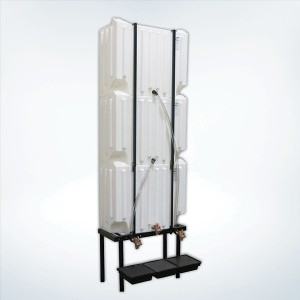

| WS71-3 | 3 | 806 Litres / 213 Gal | 38"W x 30"D | 117" |
115 Gallon Wall-Stacker Gravity Feed Systems
| System | No. of Tanks | Sys. Cap. | Sys. Dim. | Sys. Ht. |
| WS115-1 | 1 | 435 Litres / 115 Gal | 38"W x 30"D | 72" |
| WS115-2 | 2 | 871 Litres / 230 Gal | 38"W x 30"D | 117" |
